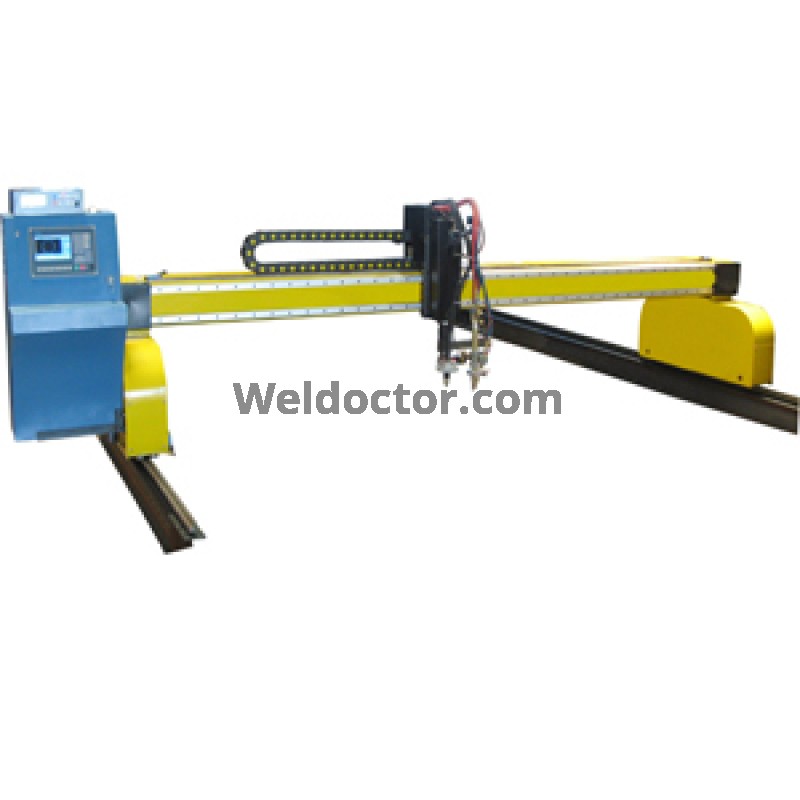

1.Adopt advanced professional industrial control technology, LCD display with 7 inches'high resolution ration lattice, easy to operate. Main movement structure with gantry type, steady and accurte cutting precision;

2.Chinese and English menu, flame cutting and plasma cutting controlled soft ware operation, transferring cutting mode is very easy;

3.Use alternative dialogue type programming software, transfer the spares' figure and nesting which drawing by AutoCAD, automatically to G code which is needed by the cutting, but no need the human compile;

4.Support USB connection, making the document transferring conveniently and software upgrade;

5.Suitable for two-dimension cutting in different metal panel as stainless steel, carbon steel.



Item	Parameter	Remark
Rated primary voltage	1 phase 220 ± 10%
Track span	4000 mm	Selective buying
Track legth	10000 mm	Selective buying
Cutting speed	0-2000 mm/min
Traveling speed	0-5000 mm/min
Torch lifting range	0-200 mm
Plasma cutting thickness	0.5-100 mm	According to the plasma power source
Plasma cutting thickness	0-200 mm	Selective buying
Cutting mode	Flame/Air plasma	Selective buying
